Brand Name : XGCLED
Model Number : P5 outdoor fixed LED display
Place of Origin : Shen Zhen ,China
MOQ : 10 square meters
Price : $678~928USD/㎡
Payment Terms : T/T, Western Union
Supply Ability : 5000 square meter per month
Delivery Time : 7-20days
Packaging Details : Cartons , wooden case , fright case
Model : P5 Outdoor fixed LED display
Pixel Pitch : 5mm
Module size : 320mmX160mm
LED lamp : SMD2525
Module resolution : 64*32kpixels
Cabinet size : 960mmX960mm
Cabinet resolution : 192*192pixels
Material : Iron Cabinet
Cabinet Weight : 40kg
Grey Level : 14bit
Refresh rate : 1920Hz
Brightness : 4000~5000cd/㎡
IP Rating : IP65
Ave/Max Power Consumption : 350W/㎡~800W/ ㎡
| Module Specification | |||
| 1 | Pixel Pitch | 5mm | |
| 2 | Led Type | SMD2525 | |
| 3 | Module Size | 320mmX160mm | |
| 4 | Module Resolution | 64x32 pixels | |
| 5 | Driving IC | MBI5124 | |
| 6 | LED lamp | Kinglight | |
| Cabinet Specification
| |||
| 1 | Cabinet Size | 960mmX960mm | |
| 2 | Cabinet Resolution | 192x192 pixels | |
| 3 | Module Qty. | 3x6pcs | |
| 4 | Cabinet Materials | Iron Cabinet | |
| 5 | Cabinet Weight | <40Kg | |
| Screen Parameters
| |||
| 1 | Screen Size | Costom Size | |
| 2 | Brightness | 5500 cd/m2 | |
| 3 | Scanning Mode | 1/8scan | |
| 4 | Viewing Angle | H:140°;V:140° | |
| 5 | Viewing Distance | >4m | |
| 6 | Gray Level | 16 Bit | |
| 7 | Refresh Frequency | 480-1920 Hz | |
| 8 | Power Input | AC 220-240V | |
| 9 | Power Comsuption | Max: 800W/㎡ Average: 250W/㎡ | |
| 10 | MTBF--hours | >10,000 hours | |
| 11 | Life--hours | ≥100,000 hours | |
| 12 | IP Grade | IP65 | |
| 13 | Operating Temperature | -30℃~ 60℃ | |
| 14 | Storage Humidity | 10℃~90℃RH | |
| 15 | Control Syetem | Novastar | |
| 16 | Operating System | Windows98/2000/NT/XP | |
| 17 | Power Supply | G-ENERGY | |
| 18 | Maintance Access | Back service | |
|
|

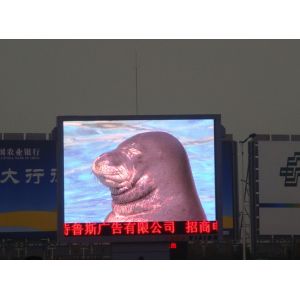

P5 Outdoor Digital Advertising Screens Images |
